Panasonic KX-TD1232 Digital Super Hybrid Phone System

KX-TD1232 Main Unit I don't provide support for the system - this page is so i don't forget where i found usefull bits and pieces :)

The panasonic software (impossible to get unless you are a dealer) or third party software like Programmator is the only option for programming these systems via a PC.

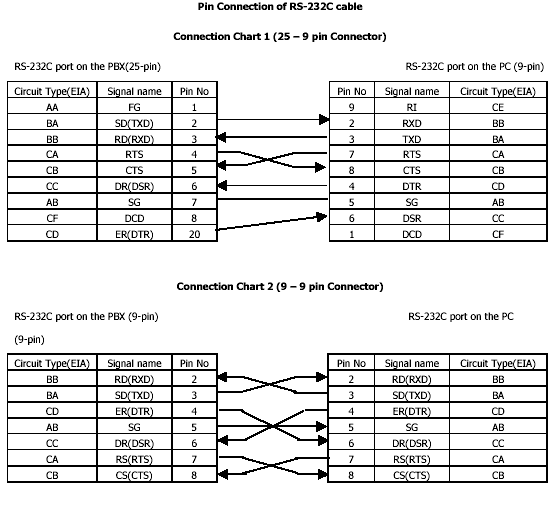

To get anywhere at all, you will need a null-modem cable setup as the following diagram shows.

TAPI pin layout
